Dust Collection / Dust Control Systems Examples of Dust Collection / Control Systems | Pulse Jet Dust Collector Filters

High Efficiency Dust Collector Cyclones

  • Maximum efficiency dust collection systems
  • Abrasive dust collecting applications
  • High temperature dust collecting applications
  • High pressure dust collecting applications
  • All types of construct materials such as mild steel, stainless steel, castables and others

Single RBC Dust Collector Cyclone

Single - Type: RBC Dust Collection Systems

SIZE CFM
RBC 3 1,050
RBC 4 1,400
RBC 6 2,100
RBC 8 3,000
RBC 12 3,800
RBC 14 4,900
RBC 17 6,200
RBC 22 7,700
RBC 28 10,000
RBC 35 12,500
RBC 44 15,500
RBC 57 20,000
RBC 71 25,000
RBC 89 32,000
RBC 111 40,000





Twin - Type: 2 RBC Dust Collection Systems

SIZE CFM
2 RBC 8 5,600
2 RBC 11 7,700
2 RBC 14 10,200
2 RBC 18 13,000
2 RBC 22 15,800
2 RBC 29 20,300
2 RBC 37 25,900
2 RBC 45 31,900
2 RBC 58 40,600
2 RBC 73 51,100
2 RBC 91 63,700
2 RBC 115 80,500
2 RBC 141 99,000



Twin RBC Dust Collector Cyclone

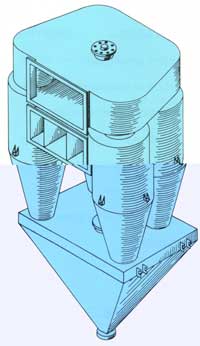

Quad RBC Dust Collector Cyclone

Quad - Type: 4 RBC Dust Collection Systems

SIZE CFM
4 RBC 8 11,200
4 RBC 11 15,400
4 RBC 14 20,400
4 RBC 18 26,000
4 RBC 22 31,600
4 RBC 29 40,600
4 RBC 37 51,800
4 RBC 45 63,800
4 RBC 58 81,200
4 RBC 73 102,200
4 RBC 91 127,400
4 RBC 115 161,000
4 RBC 141 198,000
